BendPak 10APX-181 2 Post Car Lift
SHIPPING PROTECTION ($89)
Protects you from damaged or lost shipments.
BendPak 10APX-181: The Ultimate High-Rise Solution for Modern Auto Shops
Ā
Ā
Ā
Maximize Workspace with the BendPak 181" Lift

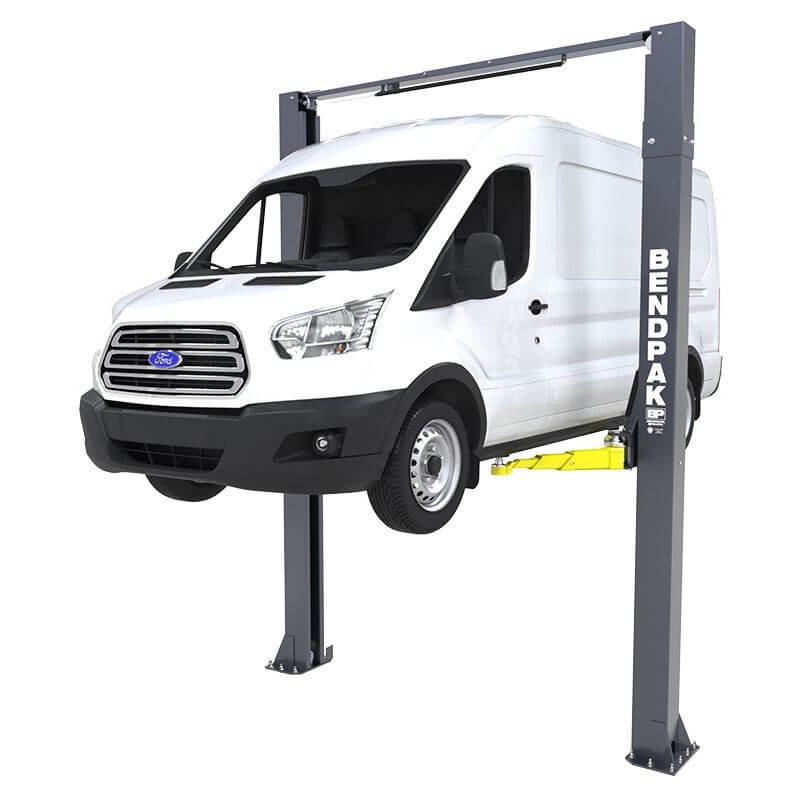

Revolutionize your auto repair capabilities with the BendPak 10APX-181 two post car lift. This ultra-high-rise powerhouse boasts an impressive 181" overhead beam height, providing unmatched clearance for high-roof cargo vans and tall technicians.
Ā

Why Choose the BendPak 181" 2 Post Lift?
Experience unrivaled versatility with the BendPak 181" tall lift. Its exceptional height accommodates the tallest commercial vehicles while maintaining the 10,000-lb lifting capacity and advanced features of the 10AP series.
Ā

Unmatched Safety with the BendPak 181" Car Lift

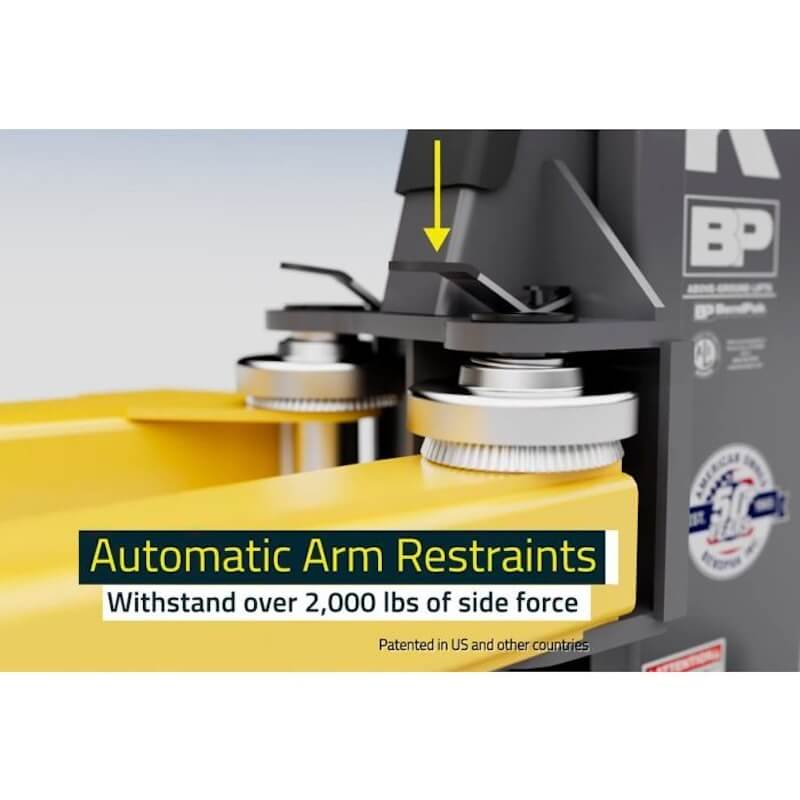

Ensure peak safety for your team and vehicles with the BendPak 181" auto lift's cutting-edge features. The padded overhead shutoff bar and robust automatic arm restraints provide a secure working environment, even when servicing the tallest vehicles.
Ā

Invest in the Future: BendPak 181" Lift Price
While the BendPak 181" lift price may be higher than other models, its unparalleled height and adaptability make it an essential investment for shops servicing high-roof commercial vehicles. The ability to efficiently work on a wider range of vehicles will quickly justify the cost and set your shop apart from the competition.
Ā
Specifications
Ā
BendPak 10APX-181 2 Post Lift Specifications
Ā

Ā
Ā
| Capacity | |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Rise | |
| A. Rise | 75" (1,905 mm) |
| D. Min Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 Seconds |
| Outside Dimensions | |
| E. Height Overall | 181" (4,597 mm) |
| F. Width Overall | 135" (3,429 mm) or 145" (3,683 mm) |
| G. Outside Columns | 127" (3,226 mm) or 137" (3,480 mm) |
| Inside Dimensions | |
| H. Inside Columns | 108.25" (2,750 mm) or 118.25" (3,004 mm) |
| I. Drive-Thru Clearance | 92" (2,337 mm) or 102" (2,591 mm) |
| J. Floor to overhead switch | 175.5" (4,458 mm) |
| Arms & Pads | |
| K. Front arm reach (MIN) | 22" (559 mm) |
| K. Front arm reach (MAX) | 47.5" (1,207 mm) |
| L. Rear arm reach (MIN) | 29.5" (749 mm) |
| L. Rear arm reach (MAX) | 57" (1,448 mm) |
| Max load per arm | 2500 lbs (1,134 kg) |
| Noise | <70 dB |
| Shipping | |
| Shipping Dimensions | 162" x 24" x 30" (4,115mm x 610mm x 762mm) |
| Weight | 1902.00 lbs |
| Features | |
|
|
Ā
Manuals
Downloadable PDF Manuals for the BendPak 10APX-181 2 Post Car Lift
