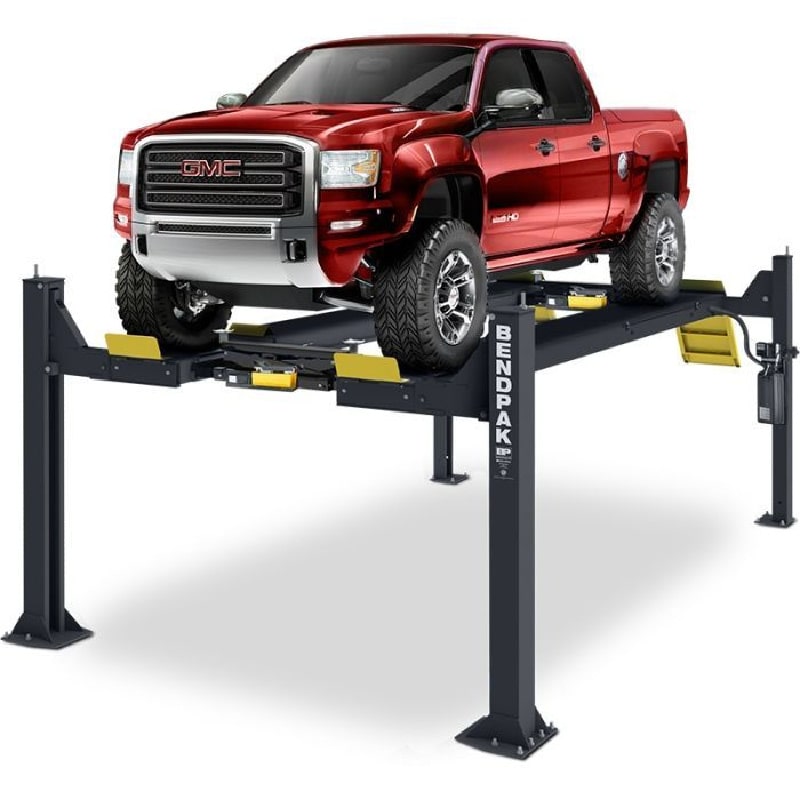

BendPak HDSO-14P
Elevate your garage’s capabilities with the BendPak HDSO14P 4 Post Car Lift, a robust solution designed for mechanics and car enthusiasts seeking unmatched durability and accessibility. This open-front, four-post lift is engineered to handle a wide range of vehicles, from compact cars to full-size trucks, making it an essential addition to any busy shop or home garage.

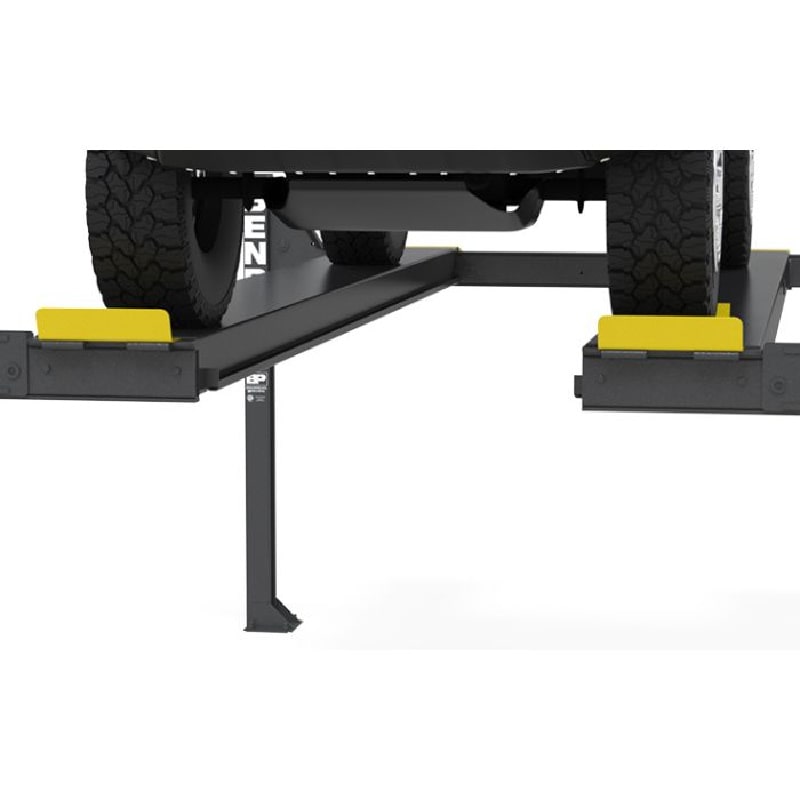

HDS014P Open-Front Design for Easy Access
The BendPak HDSO14P 4 Post Car Lift features a legendary 14,000-lb. capacity and an open-front design, eliminating the front crossbar for seamless entry and exit beneath the vehicle. This makes front-end adjustments, such as alignments, quick and hassle-free—perfect for high-volume service bays. The extended runways and longer approach ramps accommodate low-ground-clearance vehicles, ensuring smooth loading and precise positioning.
HDS014P Dependable and Low-Maintenance

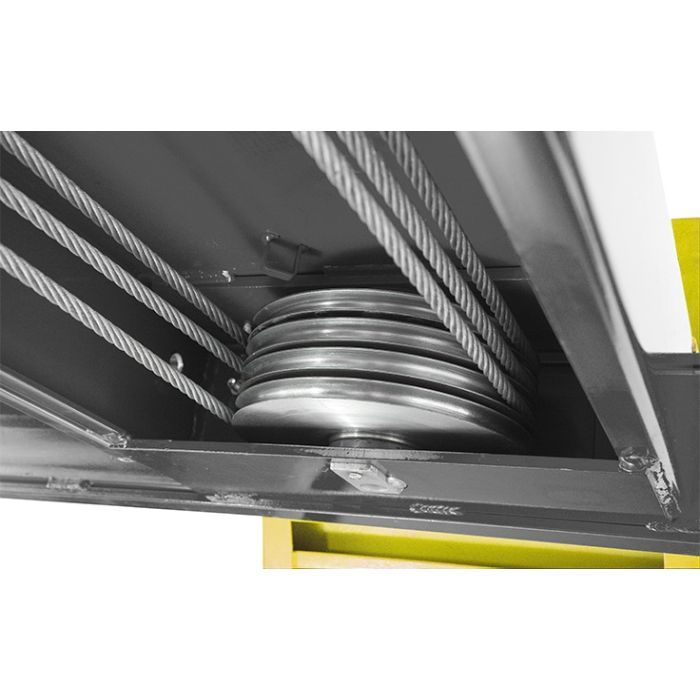

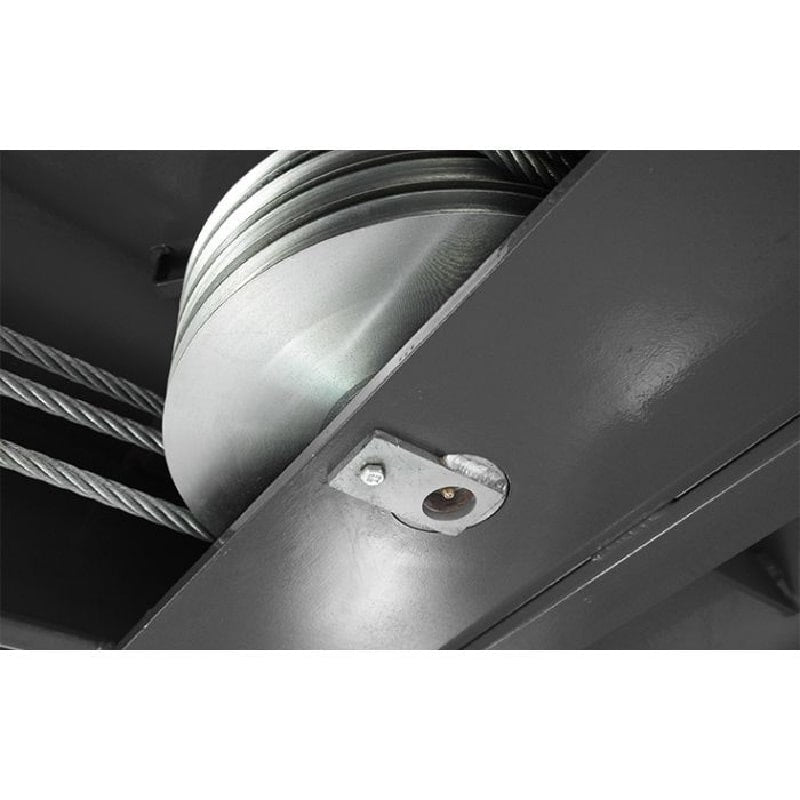

Built for longevity, the BendPak HDSO-14P boasts four high-quality, 1/2” diameter stainless steel lifting cables, each rated at 14,400 lbs., combined with a single hydraulic cylinder tucked under the runway. This maintenance-free system, paired with 10.5” diameter cable sheaves and 2.25” sheave axles, reduces wear and tear, saving you on service costs. The lift’s electric-hydraulic power system ensures reliable performance, with grease nipples on every sheave for easy upkeep.
HDS014P Versatile and Safe
With multiple adjustable height locking positions, the BendPak HDSO14P 4 Post Car Lift offers flexible parking and service heights. A push-button pneumatic safety lock control releases all four independent locks simultaneously, while spring-loaded safety locks engage automatically as the lift rises. An integrated hydraulic flow restrictor ensures controlled descent in the unlikely event of a hose rupture, prioritizing operator safety.
BendPak HDSO14P 4 Post Car Lift Frequently Asked Questions
- What is the lifting capacity? The BendPak HDSO14P has a 14,000-lb. capacity, suitable for small cars to full-size trucks.
- How is it installed? The lift requires anchoring to a concrete floor meeting ANSI/ALI ALCTV-2011 standards, with installation instructions provided.
- What vehicles can it lift? It accommodates a wide range, from compact cars to trucks, with extended runways for stability.
- Is an air supply needed? Yes, a minimum 30 psi / 3 CFM air supply is required for safety lock disengagement.
- What is the warranty? BendPak offers a 5-year warranty on the lift structure, 2 years on hydraulic components, and 1 year on labor.
- Are optional accessories available? Yes, drive-thru ramps, drip trays, and 7,000-lb. capacity rolling jacks (Model RJ-7) are available.
