BendPak PL 6000DC Parking Lift
by BendPak
Buy with total confidence
Save $400.00
Original Price
$9,495.00
Current Price
$9,095.00
SHIPPING PROTECTION ($89)
Protects you from damaged or lost shipments.

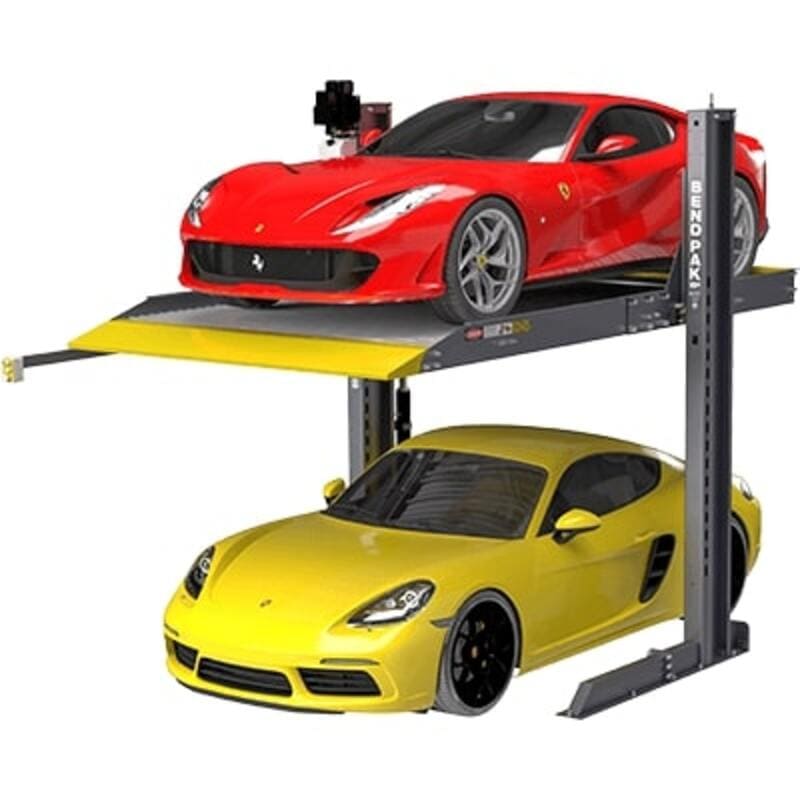

Maximize Your Parking Capacity with the BendPak PL-6000DC Dual-Column Parking Lift
Transform your parking space with the innovative PL-6000DC dual-column parking lift by BendPak. Designed to meet the diverse needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators, this versatile lift offers an efficient solution for both long-term and short-term parking challenges.
Accommodate a Wide Range of Vehicles with the PL-6000 Lift
- Suitable for SUVs, sedans, and sports cars
- Fits within a typical 8-foot parking space
- Ideal for most cars and light trucks

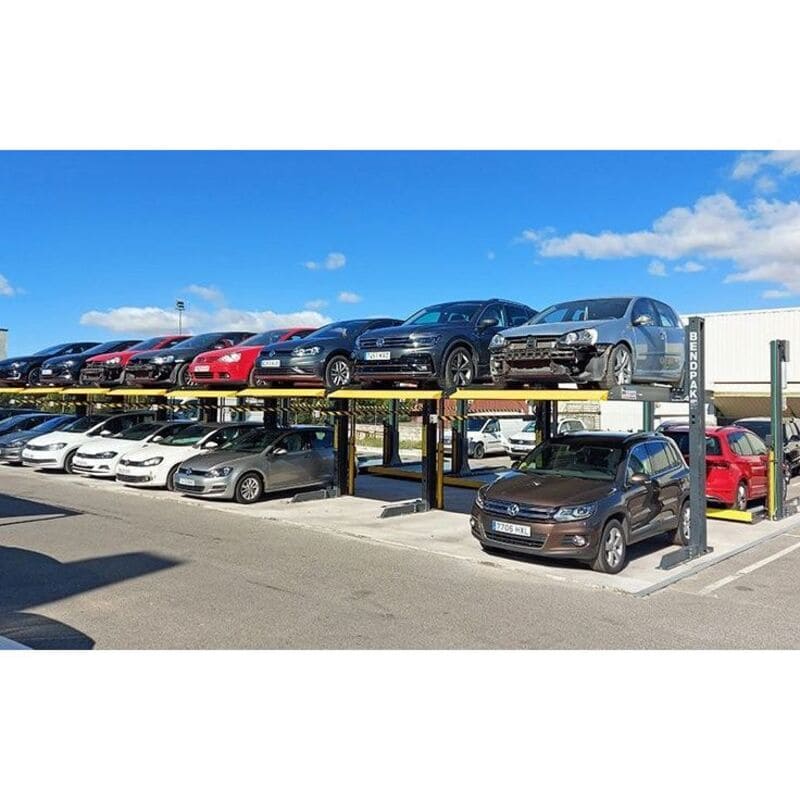

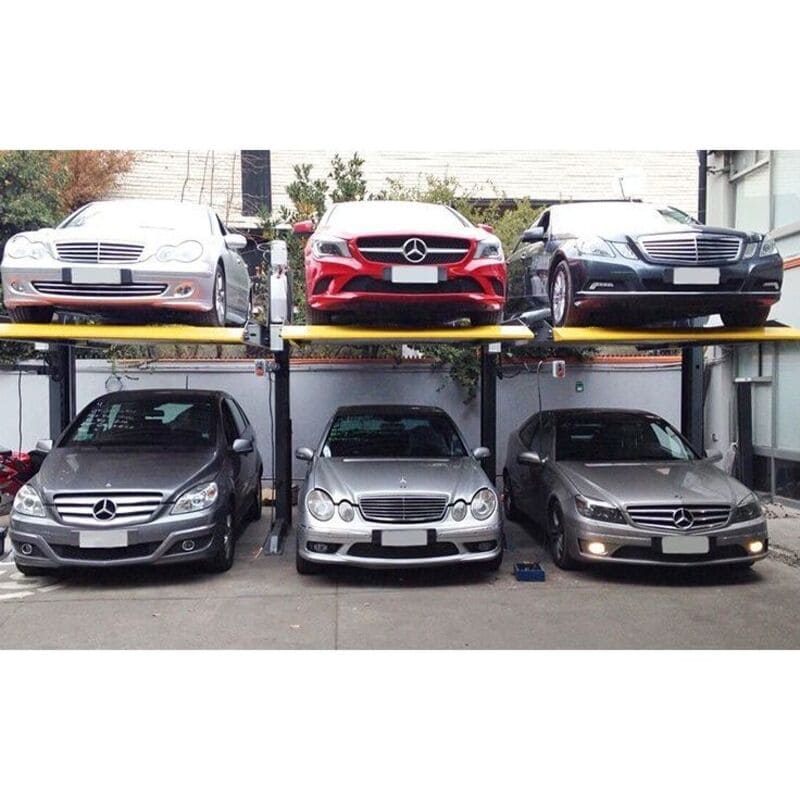

- Versatile for both indoor and outdoor installations
Reduce Energy Costs with PL-6000DC's Gravity-Driven Lowering System
- Platform descends using gravity, eliminating motor consumption during lowering
- Significant reduction in operational energy costs
- Environmentally friendly design
Simplify Installation with BendPak's PL-6000 User-Friendly Setup Process
- Comprehensive installation manual included
- Detailed floorplan and foundation drawings provided
- Access to online installation videos for step-by-step guidance
- Compact packaging for easy unloading and handling

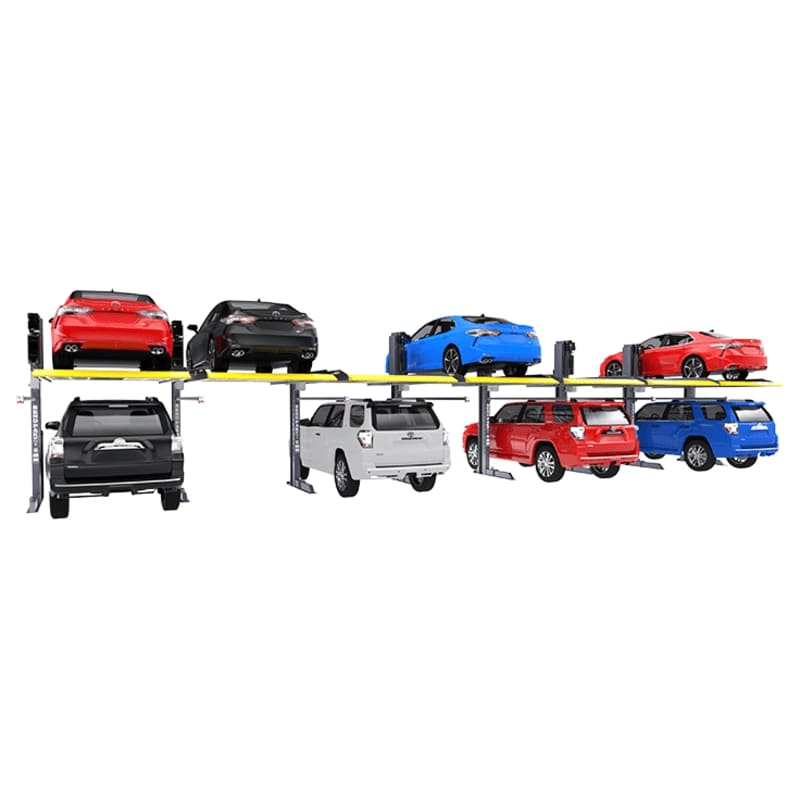

Optimize Space Utilization with the PL-6000DC's Shared Column Design
- Posts can be shared between multiple units
- Maximizes parking capacity in minimal space
- Reduces overall installation costs
Ensure Smooth Operation with BendPak Parking Lift's Hydraulic System
- Single direct-drive hydraulic cylinder
- Eliminates the need for complex screw mechanisms
- Offers enhanced reliability and smoother operation
- Reduces long-term maintenance costs
Prioritize Safety with PL-6000's Automatic Locking Mechanism
- Powerful load-holding devices engage automatically during lift
- Prevents unexpected descent in case of component failure
- Option to rest the lift on locks for extended periods
- Minimizes wear on suspension components
Experience the future of parking solutions with the BendPak PL-6000DC Dual-Column Parking Lift. Whether you're managing a bustling commercial parking facility or optimizing space in a residential complex, this innovative lift offers the perfect blend of efficiency, safety, and versatility. Maximize your parking capacity without compromising on quality or performance – choose the PL-6000DC for your parking needs.
Specifications
BendPak PL-6000DC Specs And Features
PL 6000 Features
- Ganged column design allows multiple installations in minimum space
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth quiet hydraulic operation
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans and cars
- Single direct-drive hydraulic cylinder
- Automatic safety lock combined with anti-fall device hold platform securely
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Features a rugged and reliable Manual Safety Lock Release
- Hydraulic overloading protection
- Mechanical safety locks are spaced every 4 inches
- 24VAC Operator controls
- Automatic locking system during power outage
- Emergency stop button
- Upper limit switch
- Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting
- Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass
PL 6000 Specifications
| Specification | Value |
|---|---|
| Overall Height | 131" (3,327.4mm) Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj. |
| Overall Length | 167.25" (4,250 mm) |
| Overall Width | 100.25" (2,547 mm) |
| Lifting Height | 82.5" (2,100 mm) |
| Usable Platform Width | 82.5" (2,100 mm) |
| Platform Length | 157" (3,990 mm) |
| Electrical Required | 110 or 220 VAC 50/60 Hz. Single or Three Phase (specify when ordering) |
| Control Power | 24 VAC |
| Lock Release | Manual Release |
| Power Pack | 2.2kw hydraulic power pump |
| Lifting / Lowering Time | 50 / 45 sec. |
